ExamplesΒΆ

Import Library

import age3d as a3d

Jupyter environment detected. Enabling Open3D WebVisualizer.
[Open3D INFO] WebRTC GUI backend enabled.
[Open3D INFO] WebRTCWindowSystem: HTTP handshake server disabled.

Import Mesh

file_path = 'models/monkey.stl'
mesh = a3d.import_mesh(file_path)
mesh.compute_vertex_normals()
print(mesh)

TriangleMesh with 2866 points and 968 triangles.

Export Mesh

export_file_path = 'models/export.stl'
a3d.export_mesh(export_file_path ,mesh)

Clean Mesh

print('Original:', mesh)
a3d.clean_mesh(mesh)
print('Cleaned:', mesh)

Original: TriangleMesh with 2866 points and 968 triangles.
Cleaned: TriangleMesh with 505 points and 968 triangles.

vertices, triangles =  a3d.mesh_details(mesh)
print(vertices, triangles)

[[ 0.46875   -0.7578125  0.2421875]
 [ 0.4375    -0.765625   0.1640625]
 [ 0.5       -0.6875     0.09375  ]
 ...
 [-1.0234375  0.484375   0.4375   ]
 [ 0.859375   0.3828125  0.3828125]
 [-0.859375   0.3828125  0.3828125]] [[  0   1   2]
 [  0   2   3]
 [  4   5   6]
 ...
 [379 491 410]
 [493 384 380]
 [493 380 412]]

Point Cloud Creation

pc = a3d.make_point_cloud(vertices, (255, 0, 0))

Visualization

a3d.visualize(mesh)

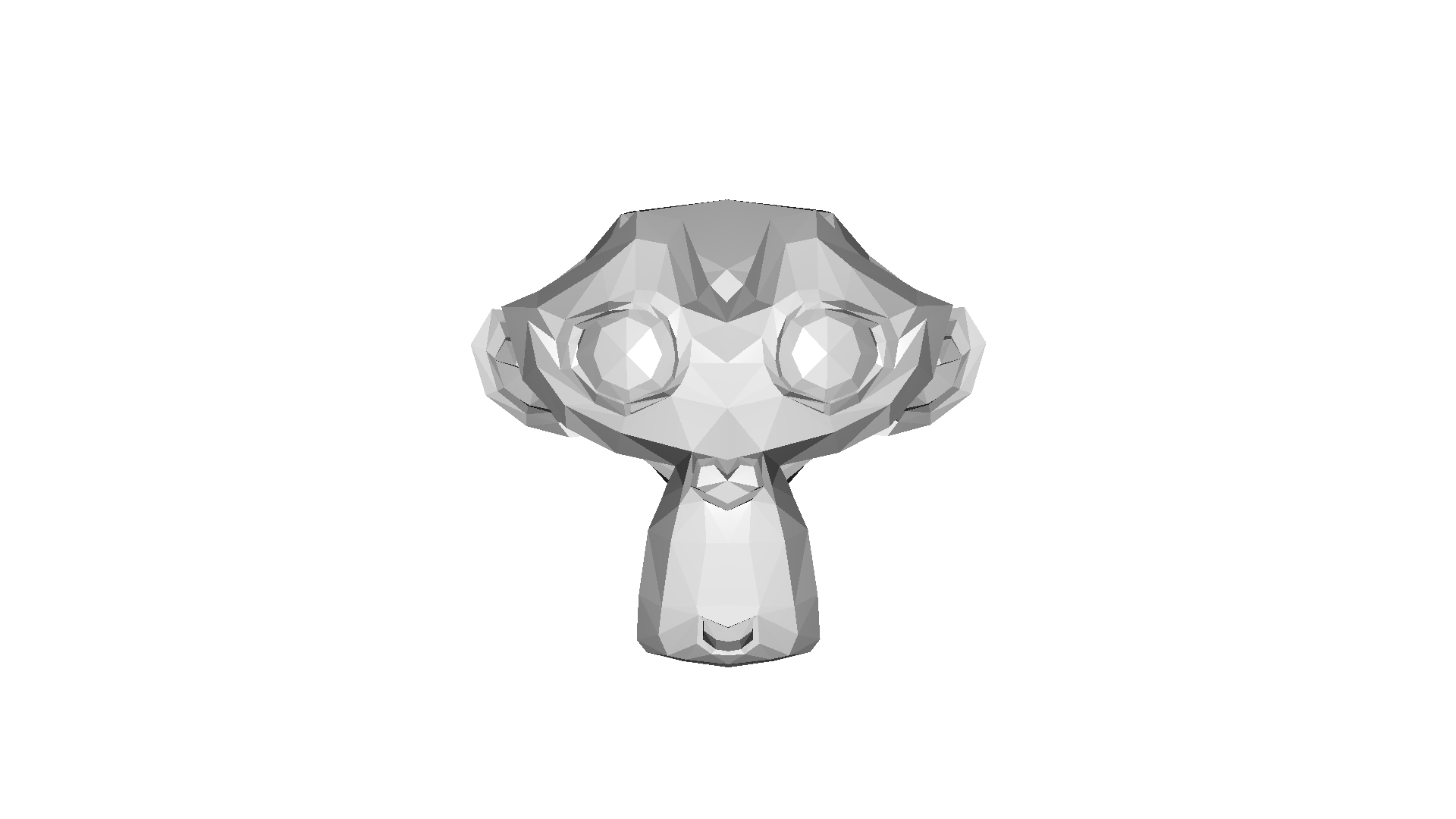

Monkey
a3d.visualize(mesh, show_wireframe=True)

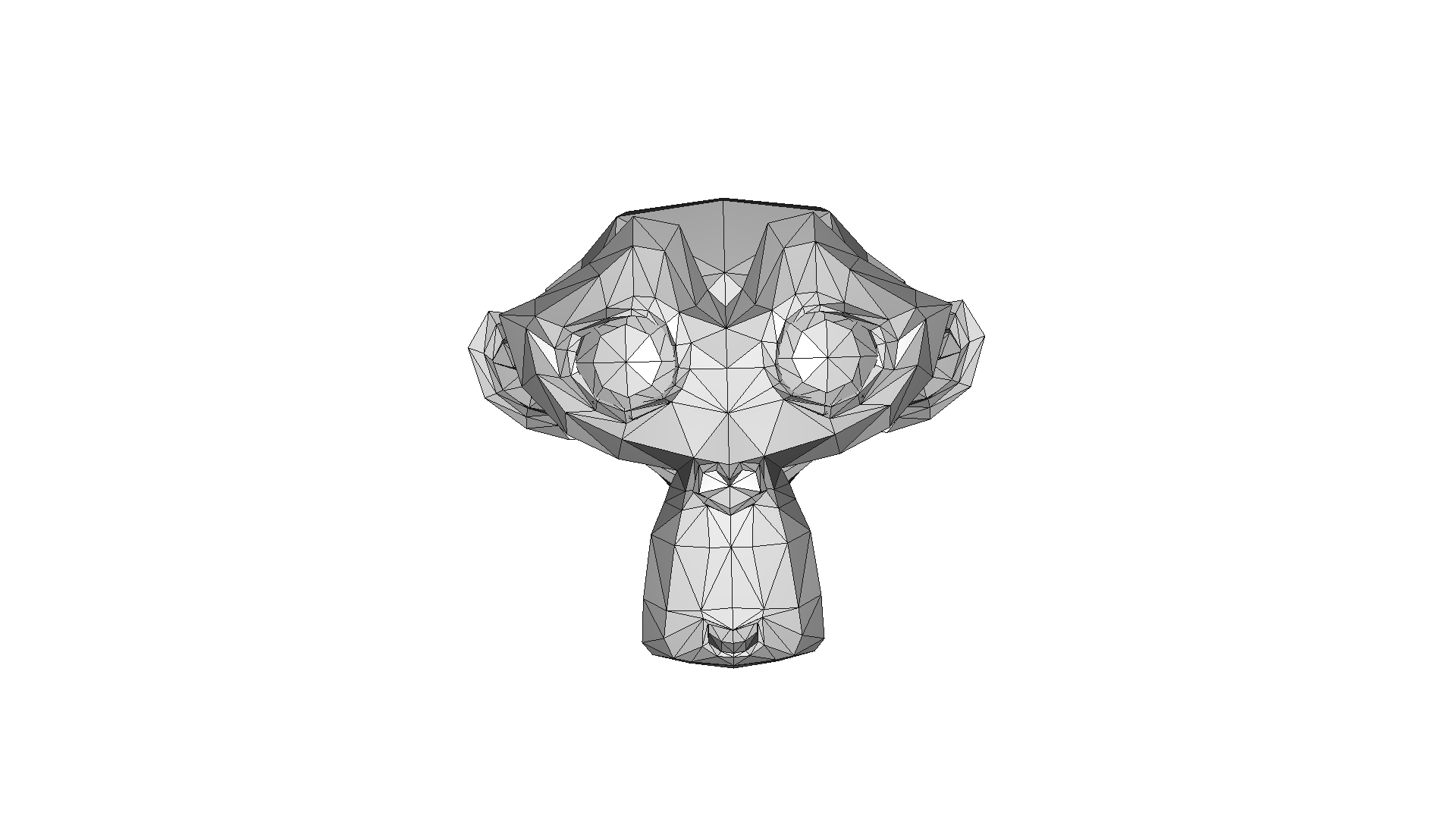

Monkey Wireframe
a3d.visualize([mesh, pc])

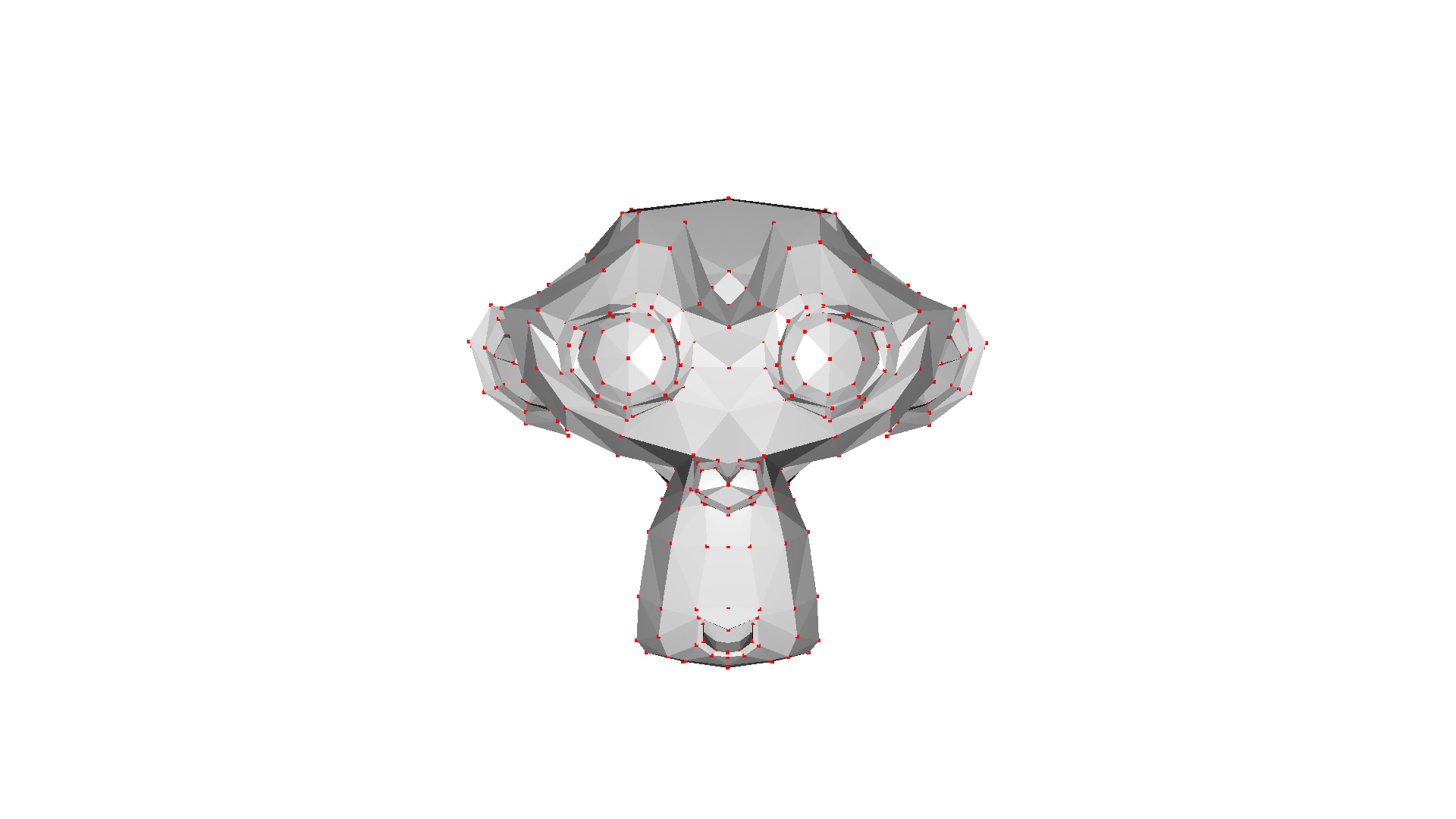

Monkey

Get Vertex Mask

a3d.get_mask(mesh, [0, 1, -1])

array([ True,  True, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
       False, False, False, False, False, False, False, False, False,
        True])

Find Minimum(s) & Maximum(s)

min_idxs, min_vertices = a3d.find_minimum(mesh,k = 1)
min_pc = a3d.make_point_cloud(min_vertices, (255, 0, 00))

max_idxs, max_vertices = a3d.find_maximum(mesh, k = 10)
max_pc = a3d.make_point_cloud(max_vertices, (0, 0, 255))

a3d.visualize([mesh, min_pc, max_pc])

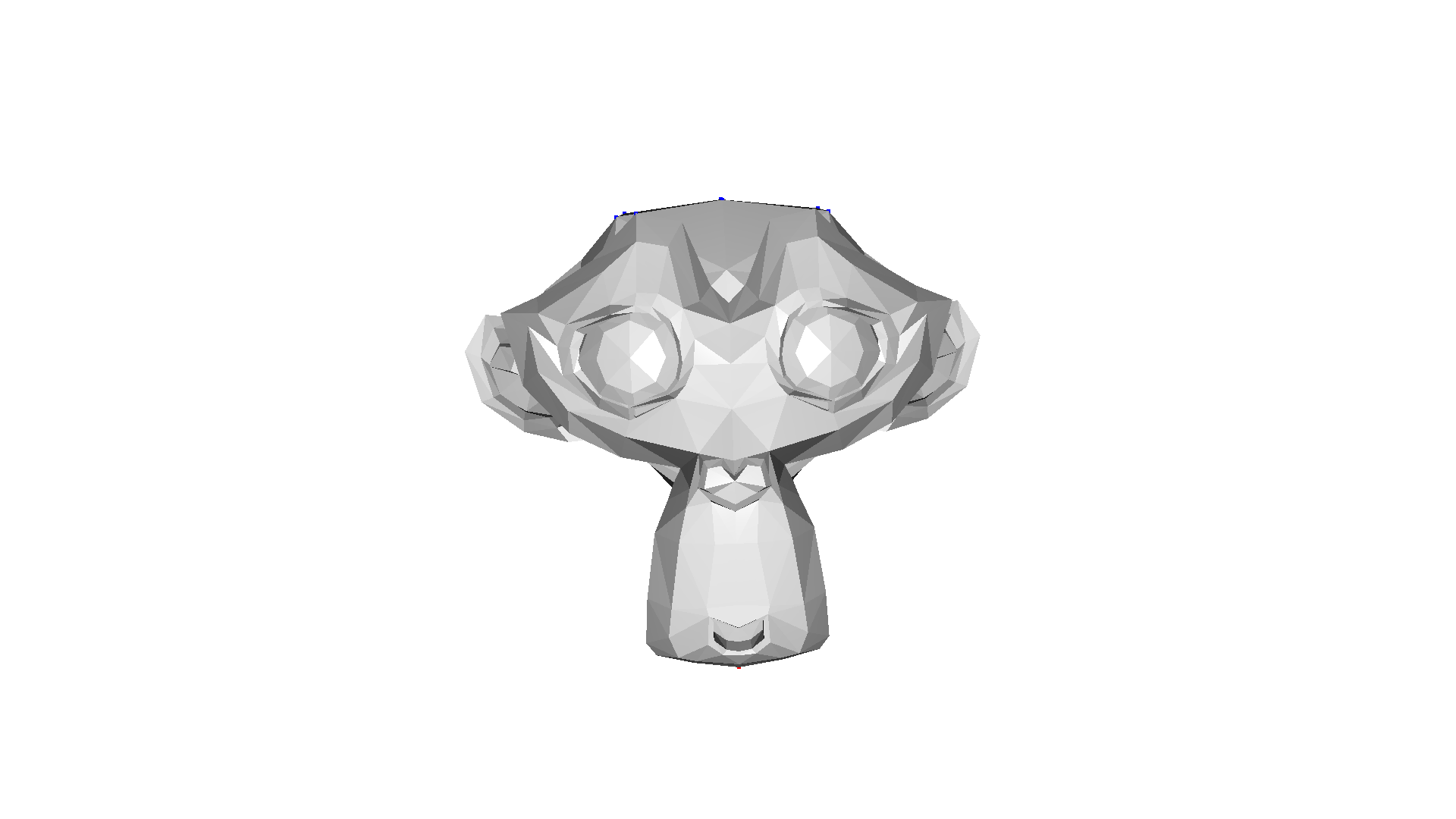

Monkey Min Max

Find All Below, Above, & Between

below_idxs, below_vertices = a3d.find_all_below(mesh, 0.25, inclusive=True)
below_pc = a3d.make_point_cloud(below_vertices, (255, 0, 0))

above_idxs, above_vertices = a3d.find_all_above(mesh, 0.75, inclusive=True)
above_pc = a3d.make_point_cloud(above_vertices, (0, 255, 0))

between_vertices = a3d.find_all_between(mesh, 0.25, 0.75)
between_pc = a3d.make_point_cloud(between_vertices, (0, 0, 255))

a3d.visualize([mesh, below_pc, above_pc, between_pc])
Monkey Below Above Between

Find Neighbors

center_idx = 100
neighbors_idx, neighbors_vertices = a3d.find_neighbors(mesh, center_idx)
neighbors_pc = a3d.make_point_cloud(neighbors_vertices, (255, 0, 0))

center_vertex = vertices[a3d.get_mask(mesh, center_idx)]
center_pc = a3d.make_point_cloud(center_vertex, (0, 0, 255))

a3d.visualize([mesh,neighbors_pc, center_pc])

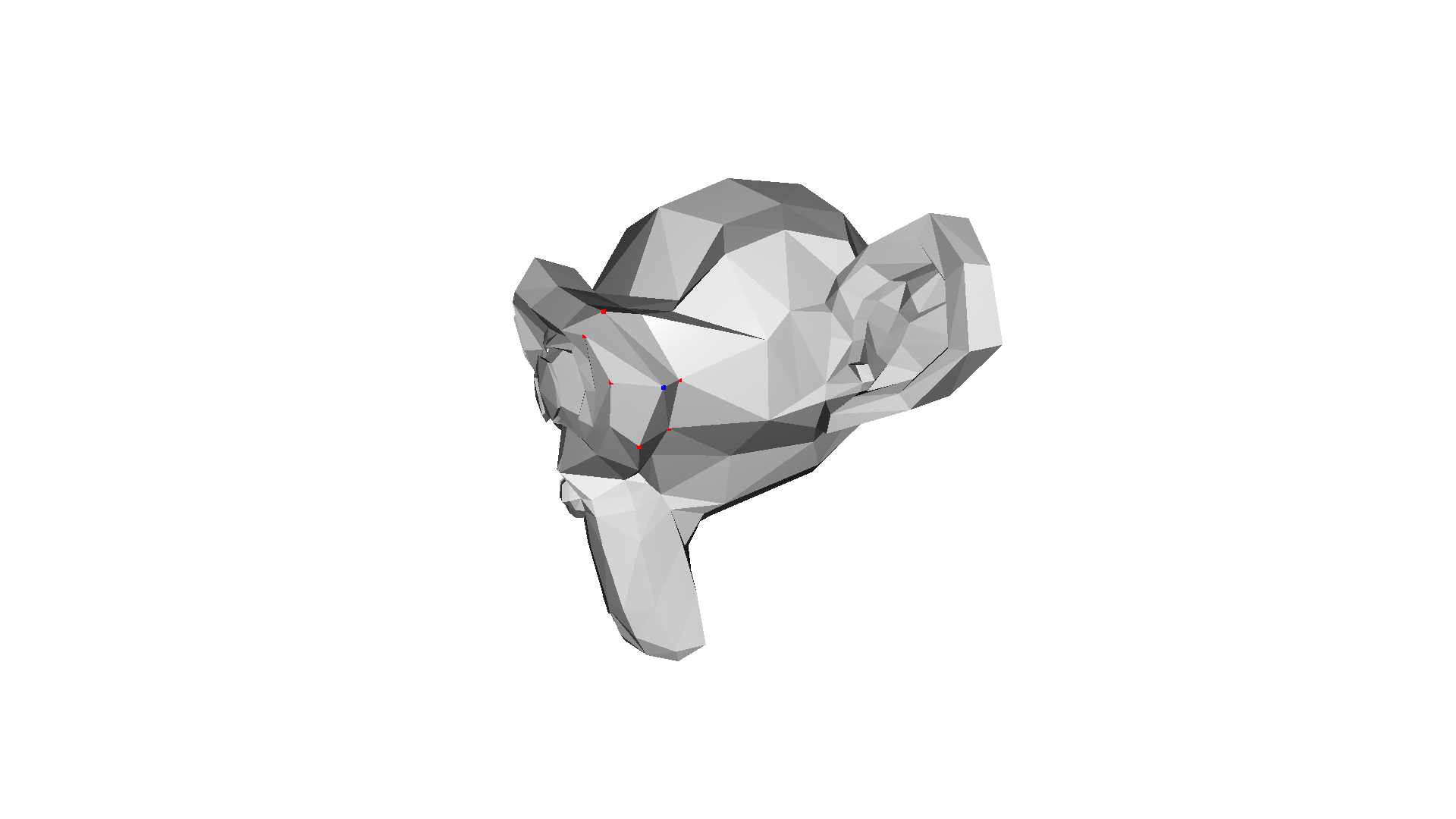

Monkey Neighbors

Mesh Subdivision

print(mesh)
mesh = a3d.mesh_subdivision(mesh, iterations=2)
print(mesh)

vertices, triangles =  a3d.mesh_details(mesh)
print(vertices, triangles)

a3d.visualize(mesh, show_wireframe=True)

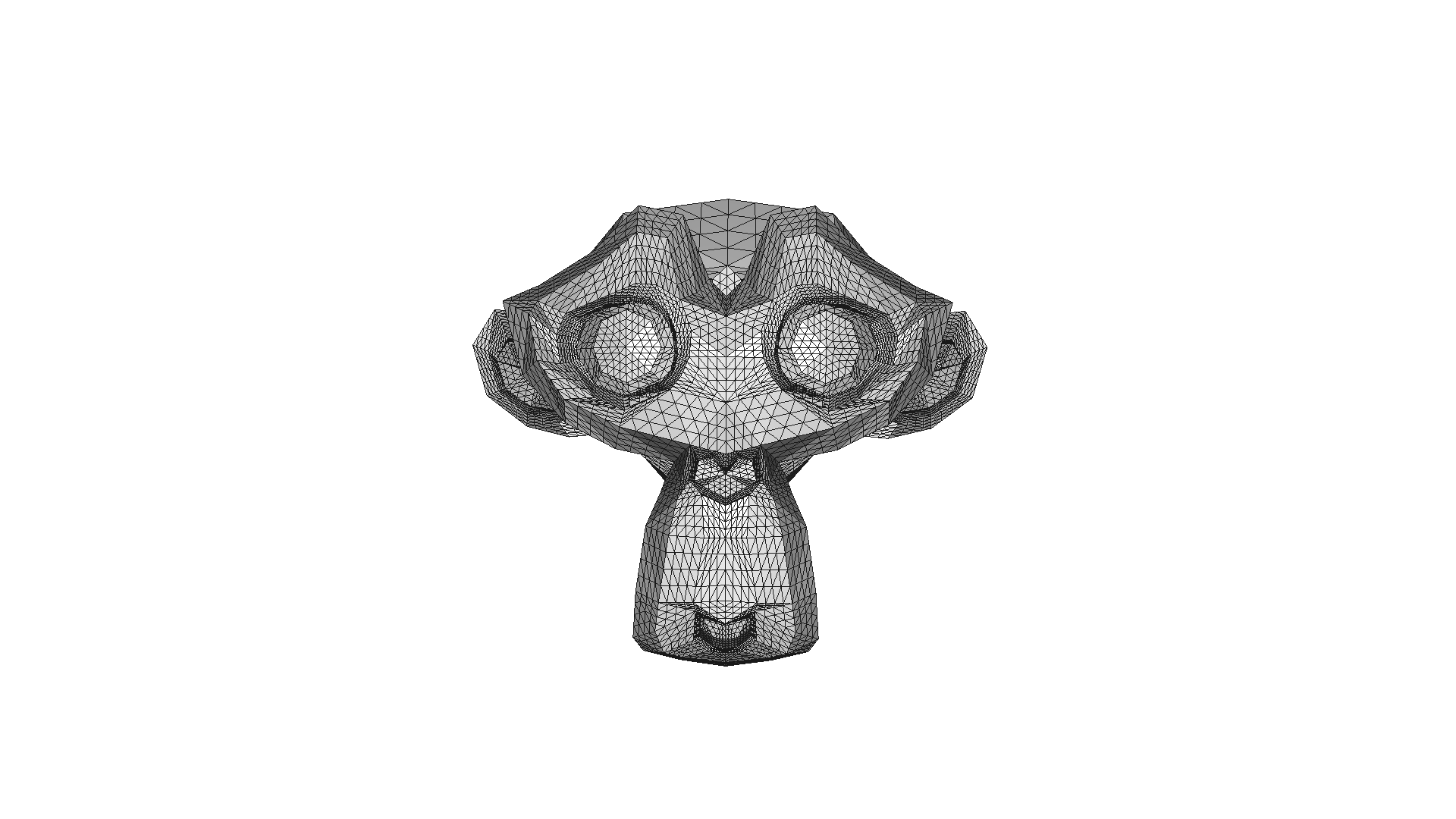

Monkey Subdivision
TriangleMesh with 505 points and 968 triangles.
TriangleMesh with 7828 points and 15488 triangles.
[[ 0.46875    -0.7578125   0.2421875 ]
   [ 0.4375     -0.765625    0.1640625 ]
   [ 0.5        -0.6875      0.09375   ]
   ...
   [-0.73632812  0.23632812 -0.12890625]
   [-0.6875      0.1953125  -0.12890625]
   [-0.73242188  0.18554688 -0.1328125 ]] [[   0 1978 1980]
   [1978  505 1979]
   [1979  507 1980]
   ...
   [7826 1709 7827]
   [7827 1924 7825]
   [7826 7827 7825]]

Bound Height

bound_height = a3d.calculate_bounds_height(mesh)
print(bound_height)

below_idxs, below_vertices = a3d.find_all_below(mesh, bound_height)
below_pc = a3d.make_point_cloud(below_vertices, (255, 0, 0))

above_idxs, above_vertices = a3d.find_all_above(mesh, bound_height)
above_pc = a3d.make_point_cloud(above_vertices, (0, 255, 0))

a3d.visualize([mesh, below_pc, above_pc])

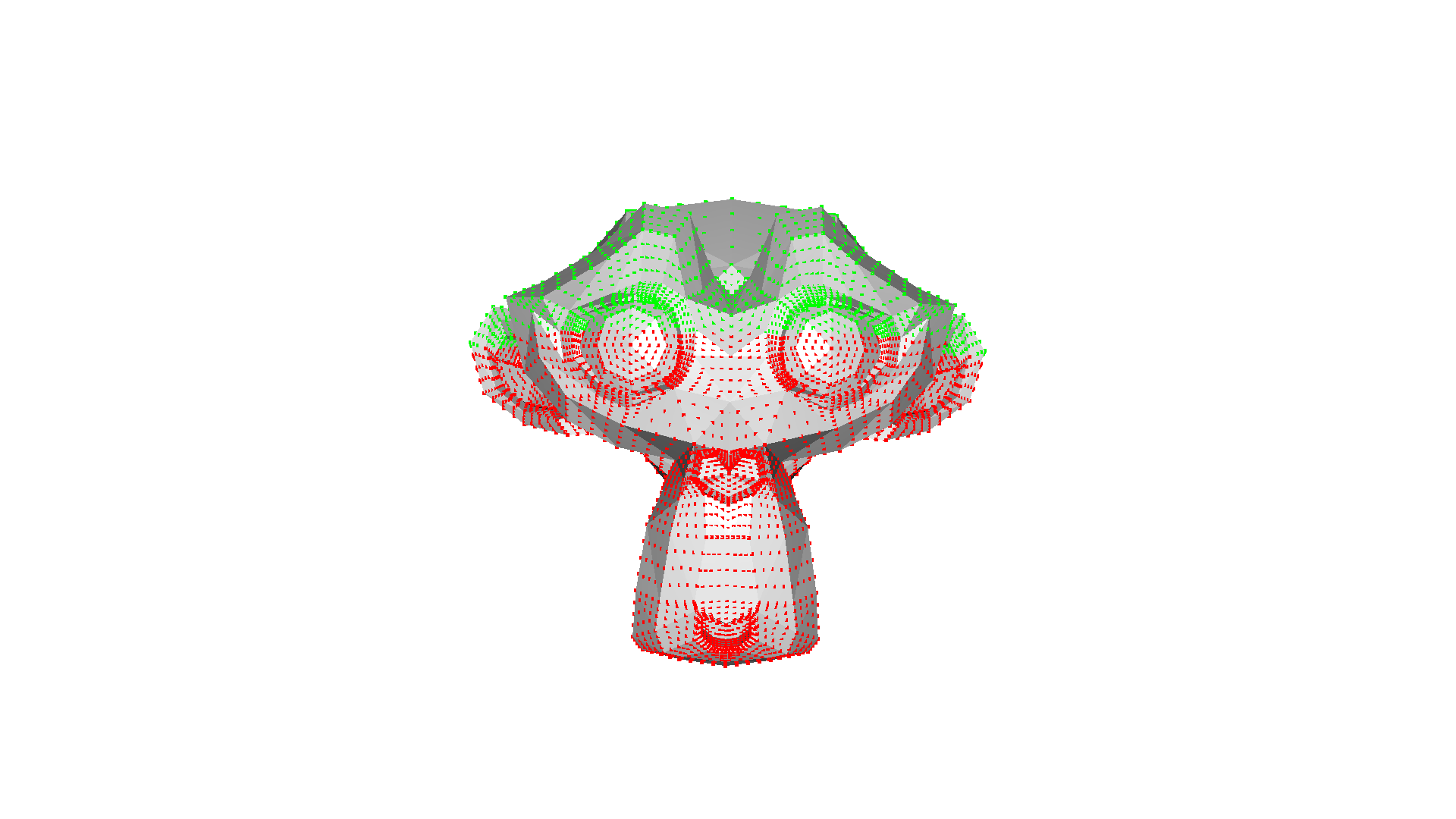

Monkey Bound Height
0.296875

Erode

updated_idxs, eroded_mesh = a3d.erode(mesh, iterations=100, erosion_lifetime=10)
eroded_mesh.compute_vertex_normals()

updated_pc = a3d.make_point_cloud(vertices[updated_idxs], (255, 0, 0))

a3d.visualize([eroded_mesh, updated_pc], True)

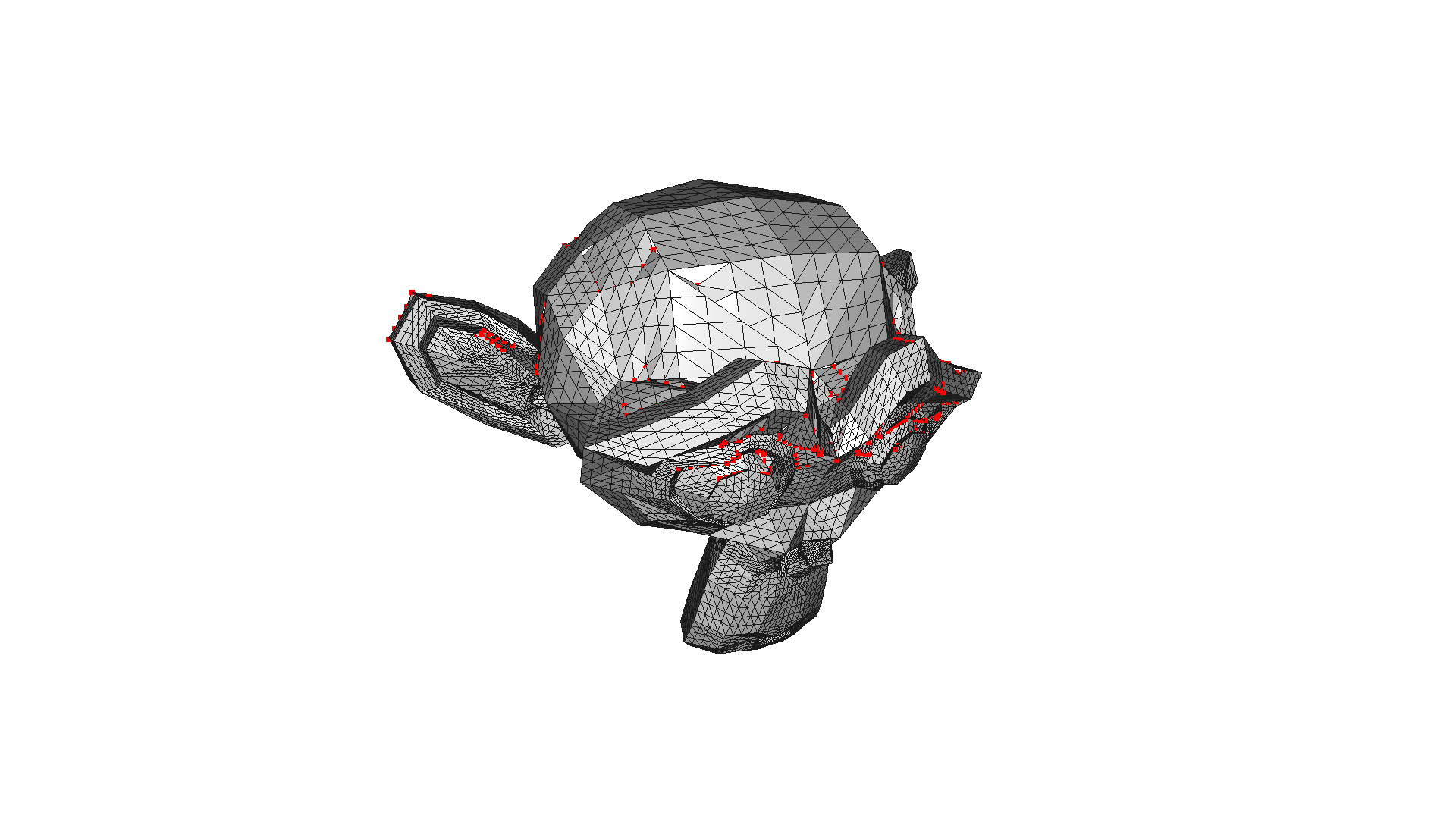

Monkey Erode Wireframe
Iter:  0 , V_idx:  7569
Iter:  1 , V_idx:  1537
Iter:  2 , V_idx:  6081
Iter:  3 , V_idx:  1202
Iter:  4 , V_idx:  4516
Iter:  5 , V_idx:  1168
Iter:  6 , V_idx:  5715
Iter:  7 , V_idx:  6116
Iter:  8 , V_idx:  3095
Iter:  9 , V_idx:  7572
Iter:  10 , V_idx:  6073
Iter:  11 , V_idx:  2458
Iter:  12 , V_idx:  4677
Iter:  13 , V_idx:  5880
Iter:  14 , V_idx:  6078
Iter:  15 , V_idx:  7146
Iter:  16 , V_idx:  1191
Iter:  17 , V_idx:  5861
Iter:  18 , V_idx:  1177
Iter:  19 , V_idx:  6651
Iter:  20 , V_idx:  1634
Iter:  21 , V_idx:  6353
Iter:  22 , V_idx:  2341
Iter:  23 , V_idx:  7677
Iter:  24 , V_idx:  4529
Iter:  25 , V_idx:  2410
Iter:  26 , V_idx:  2280
Iter:  27 , V_idx:  4923
Iter:  28 , V_idx:  2447
Iter:  29 , V_idx:  5688
Iter:  30 , V_idx:  1257
Iter:  31 , V_idx:  1946
Iter:  32 , V_idx:  6396
Iter:  33 , V_idx:  4909
Iter:  34 , V_idx:  2217
Iter:  35 , V_idx:  1203
Iter:  36 , V_idx:  1170
Iter:  37 , V_idx:  1944
Iter:  38 , V_idx:  2986
Iter:  39 , V_idx:  5034
Iter:  40 , V_idx:  6105
Iter:  41 , V_idx:  5938
Iter:  42 , V_idx:  2461
Iter:  43 , V_idx:  1200
Iter:  44 , V_idx:  3175
Iter:  45 , V_idx:  3126
Iter:  46 , V_idx:  4673
Iter:  47 , V_idx:  2961
Iter:  48 , V_idx:  4995
Iter:  49 , V_idx:  814
Iter:  50 , V_idx:  1696
Iter:  51 , V_idx:  5916
Iter:  52 , V_idx:  7721
Iter:  53 , V_idx:  6020
Iter:  54 , V_idx:  6120
Iter:  55 , V_idx:  5988
Iter:  56 , V_idx:  3174
Iter:  57 , V_idx:  5842
Iter:  58 , V_idx:  4684
Iter:  59 , V_idx:  3159
Iter:  60 , V_idx:  2251
Iter:  61 , V_idx:  6382
Iter:  62 , V_idx:  572
Iter:  63 , V_idx:  6042
Iter:  64 , V_idx:  6426
Iter:  65 , V_idx:  3089
Iter:  66 , V_idx:  6094
Iter:  67 , V_idx:  2465
Iter:  68 , V_idx:  4534
Iter:  69 , V_idx:  4609
Iter:  70 , V_idx:  1499
Iter:  71 , V_idx:  2445
Iter:  72 , V_idx:  2267
Iter:  73 , V_idx:  3176
Iter:  74 , V_idx:  5678
Iter:  75 , V_idx:  5701
Iter:  76 , V_idx:  4544
Iter:  77 , V_idx:  3194
Iter:  78 , V_idx:  4506
Iter:  79 , V_idx:  2423
Iter:  80 , V_idx:  1448
Iter:  81 , V_idx:  2323
Iter:  82 , V_idx:  5032
Iter:  83 , V_idx:  500
Iter:  84 , V_idx:  4994
Iter:  85 , V_idx:  2271
Iter:  86 , V_idx:  1482
Iter:  87 , V_idx:  4336
Iter:  88 , V_idx:  2900
Iter:  89 , V_idx:  767
Iter:  90 , V_idx:  5767
Iter:  91 , V_idx:  5978
Iter:  92 , V_idx:  347
Iter:  93 , V_idx:  4975
Iter:  94 , V_idx:  1947
Iter:  95 , V_idx:  3099
Iter:  96 , V_idx:  5975
Iter:  97 , V_idx:  4564
Iter:  98 , V_idx:  113
Iter:  99 , V_idx:  130

a3d.visualize([eroded_mesh, updated_pc])

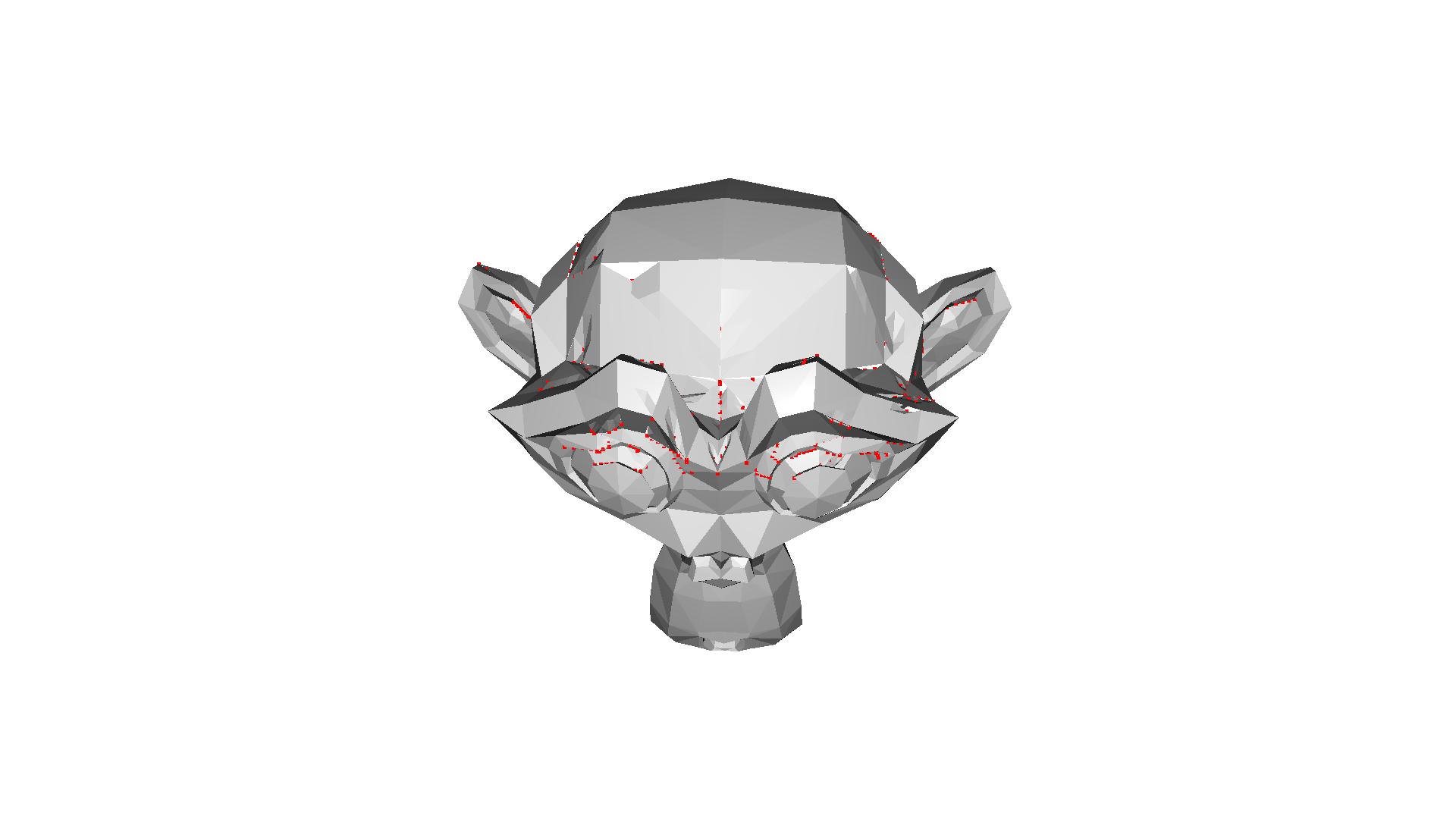

Monkey Erode
